1 Overview

Clustering looks for observations that are similar to one another and groups them together. It’s an unsupervised technique i.e. there aren’t defined/known groups. It is import to scale the data before analysis. There are different ways to calculate distance between observations, and methods to determine how many groups to have.

1.1 Calculating Distance

Consider 3 points on a grid: (1,4), (3,2), (7,8) and calculate the distance between them

points <- data.frame(x = c(1, 3, 7), y = c(4, 2, 8))
dist(points) # defaults to euclidean

##          1        2
## 2 2.828427
## 3 7.211103 7.211103

dist(points, method = "manhattan")

##    1  2
## 2  4
## 3 10 10

1.1.1 Importance of Scaling

Consider calculating the distance between 3 height (inches) and weight (pounds) pairs.

height_weight <- data.frame(height = c(65, 68, 60), weight = c(140, 175, 115))
dist(height_weight)

##          1        2
## 2 35.12834
## 3 25.49510 60.53098

Now scale (normalize) the height and weight pairs to be centered at 0 with standard deviation 1 and calculate distance

height_weight_scaled <- scale(height_weight)
dist(height_weight_scaled)

##          1        2
## 2 1.378276
## 3 1.489525 2.807431

With the unscaled data, observations 1 and 3 are the closest, while with the scaled data observations 1 and 2 are the closest.

1.1.2 Calculating Distance for Categorical Variables

Note: dummies was removed from the CRAN repository

TODO: look for alternative package

First convert to dummy variables

college_gender <- data.frame(college = as.factor(c("ASC", "ASC", "BUS", "BUS", "BUS", "ENG")), gender = as.factor(c("female", "male", "male", "male", "female", "male")))
# install.packages('dummies')
# library(dummies)
# college_gender_dummy <- dummy.data.frame(college_gender)
# print(college_gender)
# print(college_gender_dummy)

This is just one example of creating dummy variables in R

Then calculate distance

# dist(college_gender_dummy, method = "binary")

1.2 Clustering Techniques

Some popular clustering techniques are: Hierarchical, K-means, Partition Around Medoids (PAM), and Principal Component Analysis (PCA)

2 Hierarchical Clustering

Generally agglomerative (“bottom-up”): each observation starts in its own cluster, and pairs of clusters are merged as one moves up the hierarchy

Put each data point in its own cluster
Identify the closest (using linkage criteria) two clusters and combine them into one cluster
Repeat the above step until all the data points are in a single cluster

Alternatively divisive (“top-down”): all observations start in one cluster, and splits are performed recursively as one moves down the hierarchy

2.1 Linkage

Linkage determines the distance between sets of observations as a function of the pairwise distances between observations
Complete/single/average = \(max/min/mean \{d(a,b) : a \in A, b \in B\}\)

Complete/average tends to produce balanced trees while single produces less balanced

2.2 Hierarchical Clustering: Iris Example

head(iris)

##   Sepal.Length Sepal.Width Petal.Length Petal.Width Species
## 1          5.1         3.5          1.4         0.2  setosa
## 2          4.9         3.0          1.4         0.2  setosa
## 3          4.7         3.2          1.3         0.2  setosa
## 4          4.6         3.1          1.5         0.2  setosa
## 5          5.0         3.6          1.4         0.2  setosa
## 6          5.4         3.9          1.7         0.4  setosa

iris_dist <- dist(iris[, 1:2]) # defaults to euclidean distance
clusters <- hclust(iris_dist) # defaults to complete linkage

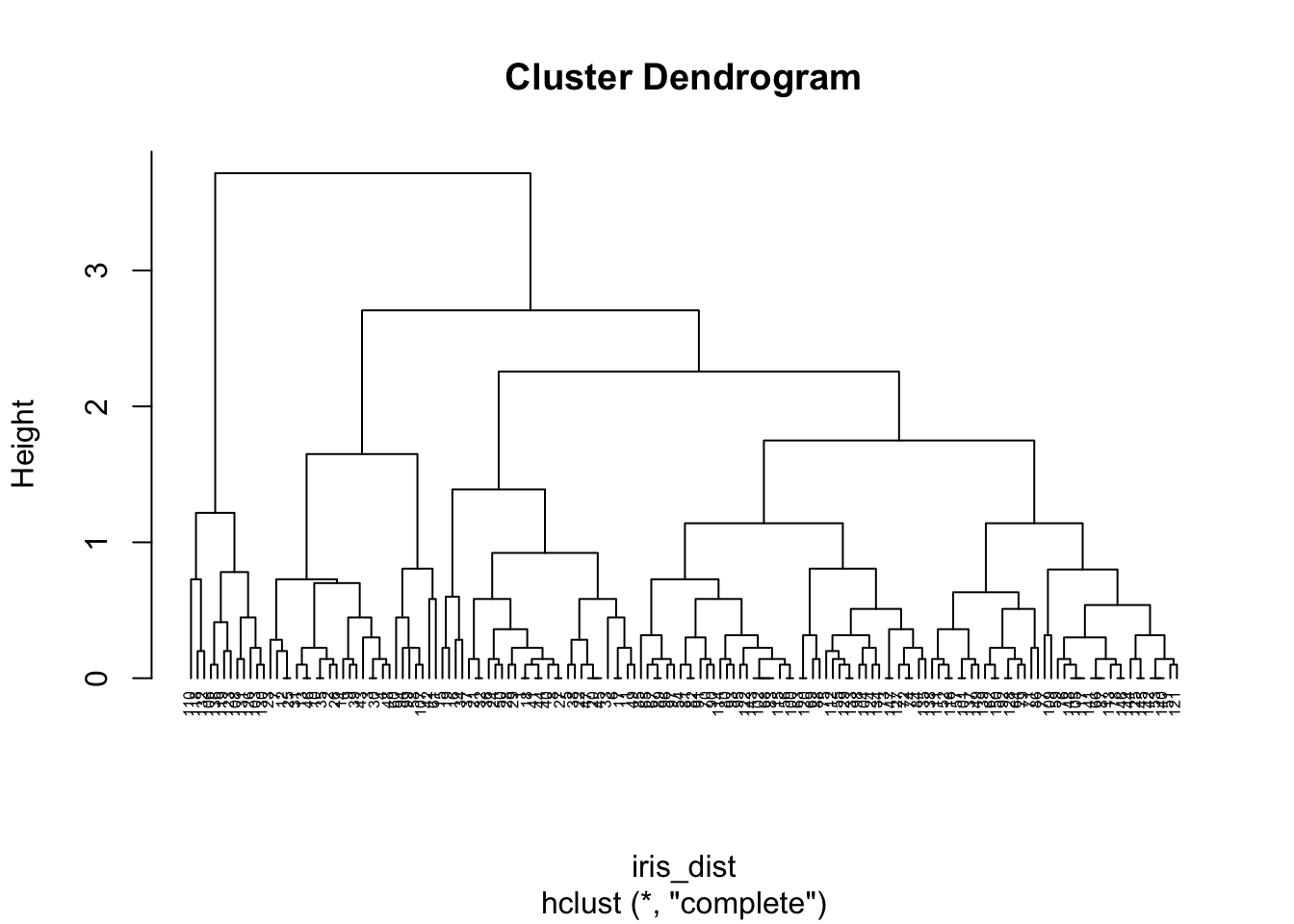

plot(clusters, hang = -1, cex = 0.5)

iris$cluster <- cutree(clusters, k = 3)
library(ggplot2)
ggplot(iris, aes(Sepal.Length, Sepal.Width, color = as.factor(cluster), shape = Species)) +
  geom_point(size = 2) +
  theme(legend.title = element_blank())

Here we knew there were 3 species of flower, so it was easy to choose the number of clusters (k). We could alternatively cut at a height by specifying h in cutree. With complete linkage this tells us the maximum distance to all other members in a cluster is less than h

3 K-Means Clustering

Choose number of clusters K
Randomly generate/select K centroids and assign each data point to the nearest centroid
Recalculate centroids and reassign data to nearest centroid until the cluster assignments don’t change

3.1 K-Means: Iris Example

model_km <- kmeans(iris[, 1:2], centers = 3)
iris$cluster <- model_km$cluster
library(ggplot2)
ggplot(iris, aes(Sepal.Length, Sepal.Width, color = as.factor(cluster), shape = Species)) +
  geom_point(size = 2) +
  theme(legend.title = element_blank())

3.2 Parameters for K-Means and Determining Number of Clusters

nstart: how many random starts should be done? Run algorithm nstart times and choose the result with the lowest total within sum of squares. Default = 1 but larger value is generally recommended.
iter.max: maximum number of iterations. Default is 10, change if convergence takes longer.

3.2.1 Elbow (Scree) Plot

Run many models with varying value of k, calculate total within-cluster sum of squares, find where ‘elbow’ occurs to determine optimal k to use

library(purrr)
# Use map_dbl to run many models with varying value of k (centers)
tot_withinss <- map_dbl(1:10, function(k) {
  model <- kmeans(x = iris[, 1:2], centers = k)
  model$tot.withinss
})

# Generate a data frame containing both k and tot_withinss
elbow_df <- data.frame(
  k = 1:10,
  tot_withinss = tot_withinss
)

# Plot the elbow plot
ggplot(elbow_df, aes(x = k, y = tot_withinss)) +
  geom_line() +
  scale_x_continuous(breaks = 1:10)

3.2.2 Silhouette Analysis

Calculate how similar each observation is with the cluster it’s assigned relative to other clusters. Ranges from -1 (observations may be assigned to the wrong cluster) to 1 (observation is well matched to the assigned cluster). A value of 0 suggests the observation is borderline matched between two clusters

library(cluster)
# Use map_dbl to run many models with varying value of k
sil_width <- map_dbl(2:10, function(k) {
  model <- kmeans(x = iris[, 1:2], centers = k)
  ss <- silhouette(model$cluster, dist(iris[, 1:2]))
  mean(ss[, 3]) # sil_width
})

# Generate a data frame containing both k and sil_width
sil_df <- data.frame(
  k = 2:10,
  sil_width = sil_width
)

# Plot the relationship between k and sil_width
ggplot(sil_df, aes(x = k, y = sil_width)) +
  geom_line() +
  scale_x_continuous(breaks = 2:10)

K=2 has the largest silhouette score, indicating we should use 2 clusters (though recall we know there are actually 3 species).

4 Principal Component Analysis

PCA finds structure in features and aids in visualization

Find linear combination of variables to create principal components
Maintain most variance in the data (first component has largest possible variance)
Principal components are uncorrelated -> orthogonal
- Resulting vectors are an uncorrelated orthogonal basis set

Same as eigenvalue decomposition of \(X^TX\) (covariance matrix - estimates how each variable relates to another, may differ by a constant) and singular value decomposition of \(X\) (note the right singular vectors of \(X\) are the eigenvectors of \(X^TX\).

Important to scale/normalize data first, especially if input variables use different units of measurement or the input variables have significantly different variances. It seems the general consensus is to center the data as well.

First principal component is equal to eigenvector with largest eigenvalue. Eigenvalues tell you how much variance there is in the data in the direction of the eigenvector, so the eigenvector with the largest eigenvalue is the direction the data has the most variation.

4.1 Iris Example

PCA function

rm(iris)
pca.iris <- prcomp(x = iris[-5], scale = T, center = T)
summary(pca.iris)

## Importance of components:
##                           PC1    PC2     PC3     PC4
## Standard deviation     1.7084 0.9560 0.38309 0.14393
## Proportion of Variance 0.7296 0.2285 0.03669 0.00518
## Cumulative Proportion  0.7296 0.9581 0.99482 1.00000

The first two principal components account for over 95% of the variance.

Which predictors contribute to which principal components

pca.iris$rotation

##                     PC1         PC2        PC3        PC4
## Sepal.Length  0.5210659 -0.37741762  0.7195664  0.2612863
## Sepal.Width  -0.2693474 -0.92329566 -0.2443818 -0.1235096
## Petal.Length  0.5804131 -0.02449161 -0.1421264 -0.8014492
## Petal.Width   0.5648565 -0.06694199 -0.6342727  0.5235971

Sepal.Width has little contribution to PC1 but almost all of PC2

4.1.1 Visualization

Visualizing first two components

library(ggfortify)
autoplot(pca.iris, data = iris, colour = "Species", loadings = TRUE, loadings.colour = "blue", loadings.label = TRUE, loadings.label.size = 3)

Petal.Width and Petal.Length are in the same direction indicated they are correlated in the original data

Plot how much variation each principal component explains:

pca.iris.var <- pca.iris$sdev^2
pve <- pca.iris.var / sum(pca.iris.var) # proportion of variance explained
plot(pve, xlab = "Principal Component", ylab = "Proportion of Variance Explained", main = "Scree Plot", ylim = c(0, 1), type = "b")

4.2 PCA and Clustering

Perform K-Means clustering on the first two components. This differs from the previous k-means example because we now consider all 4 data columns for clustering (by consider the principal components) instead of just using the first 2 data columns. Plot data using first two components

library(ggfortify)
iris_scaled <- scale(iris[, -5]) # Scale data first for PCA
iris_scaled <- cbind(iris_scaled, iris[, 5])
autoplot(kmeans(iris_scaled[, -5], 3), data = iris_scaled, frame = T)
